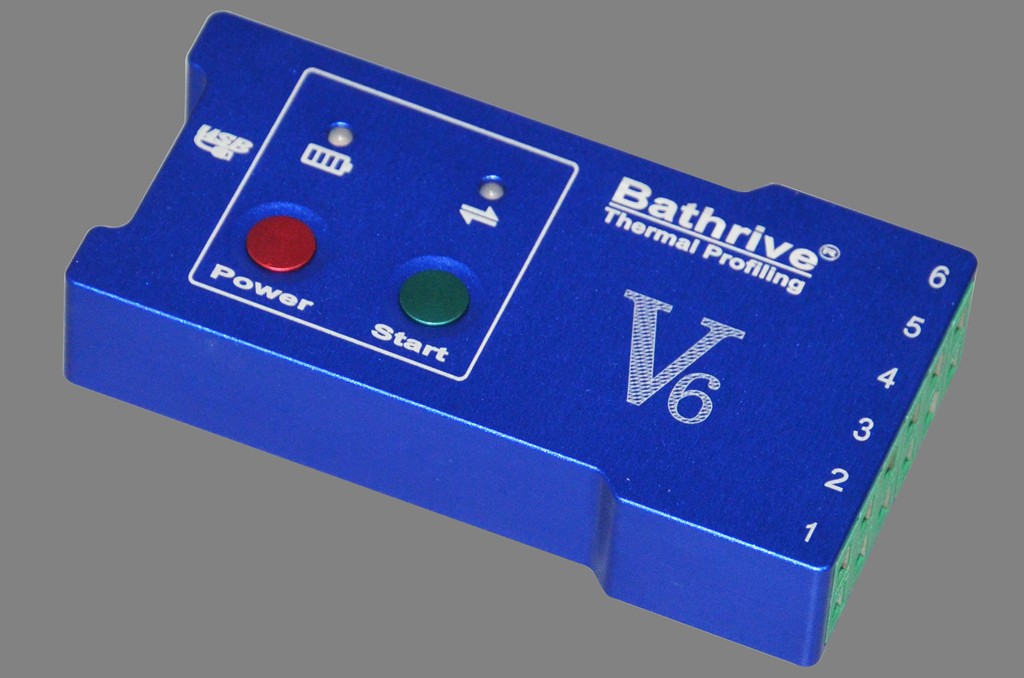

1: Ultra-small size, built-in 32-bit super computing power high-speed processing chip, so that temperature measurement handy, design service life of more than 10 years

2: High measurement accuracy +/-0.5℃, fast speed, the fastest 0.05 seconds/time, easily cope with a variety of challenges in the field of temperature measurement

3: Data transmission mode, high-speed USB data transmission and charging as one, data transmission at the same time to complete the battery charge, no additional charging

4:3 trigger start modes and 4 trigger stop modes can be optimized and matched at will to achieve intelligent start and stop without manual intervention

5: Built-in 1000MA high temperature resistant polymer rechargeable battery, can work continuously for 30 hours on a single charge (related to sampling frequency and number of channels)

6: Up to 100 groups of more than curve overlap analysis, support temperature. Furnace. Process data export, furnace temperature data import

7: A maximum of 16 groups of temperature curve data can be saved

8: Complete firmware information prompts, users can view the use of the instrument record at any time. Status and hardware configuration information

9: Intelligent PWI index analysis, floating PWI,CPK indicator can visually display curve analysis results

10: Manual, automatic curve optimization function, effectively shorten the adjustment of oven time, with the blessing of this function, novices can also easily and quickly complete the furnace temperature setting

11: Instrument time can be set or calibrated to synchronize with the computer

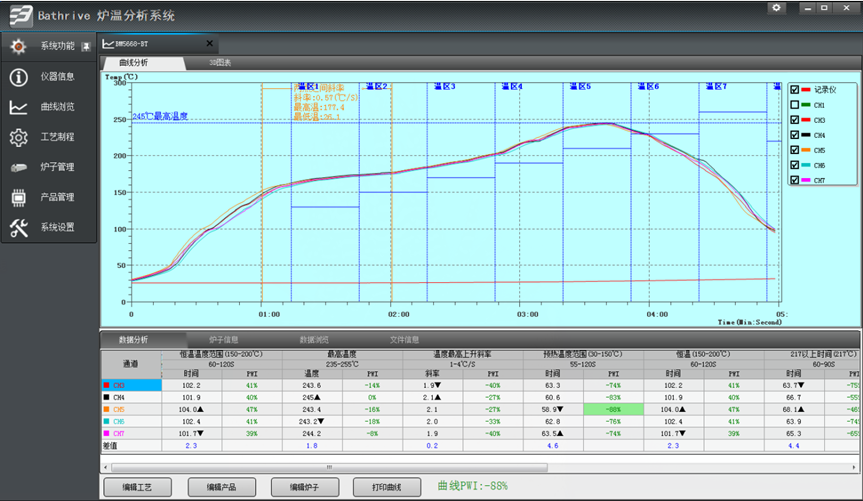

12: Powerful curve editing, including curve clipping, curve alignment, curve movement and many other curve editing methods, so that curve editing becomes arbitrary

13: Curve tolerance zone display, so that the reasonable range of curve change becomes clear

14: Highlight the analysis section, so that all the curve sections corresponding to the analysis data items are highlighted, and simply and directly see the one-to-one correspondence between the analysis data and each section of the curve without other auxiliary means

15: Can be segmented analysis of the curve and issue each section of analysis data

16: Can issue curve CPK,SPC quality analysis report

SMT industry: reflow soldering wave soldering
