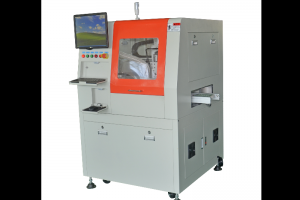

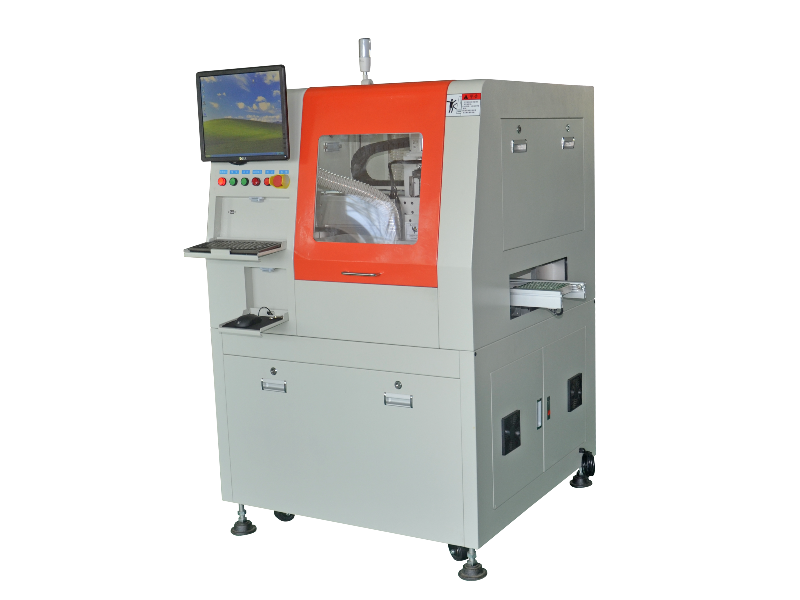

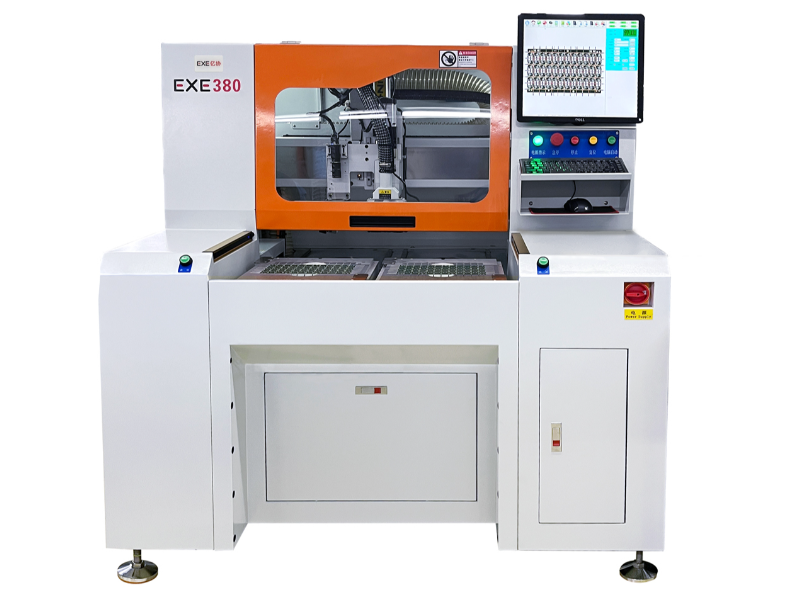

Online sawtooth splitter EXE-380AT

Specification parameter

Plate size: 50*50-350*380mm

Plate thickness: 0.4-3.6mm

Plate speed: 0--200mm/S

Product accuracy: ±0.5

Power supply: 220V 4KW

Precision control: CCD camera positioning, Mark calibration

Suction mode: Upper/lower suction

Cutting motor power: 500W

Product fixture testing: Yes

Cutting motor speed: 13000 RPM

Number of platforms: 2

Partition mode: serrated knife

Blade automatic compensation: Yes

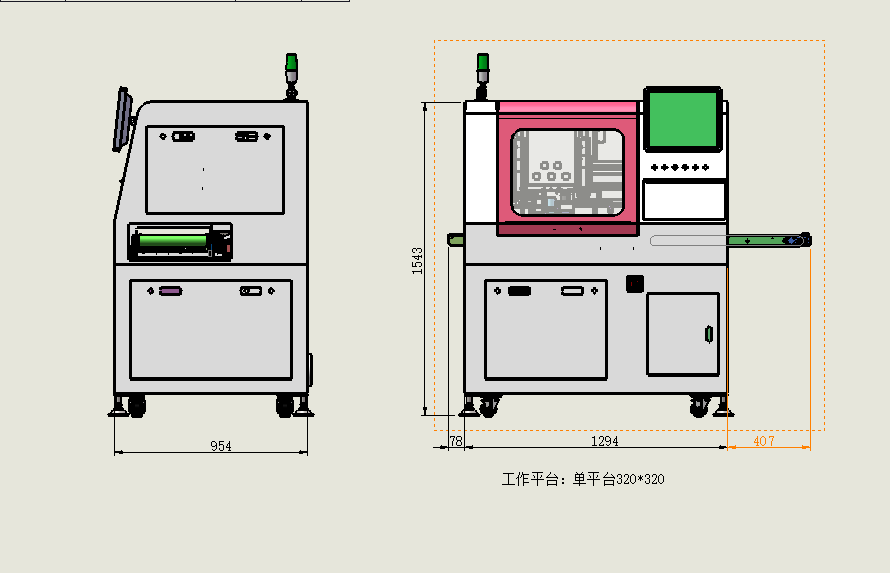

Equipment size: L1065*W1065*H1520

Product details page Product characteristics Quality assurance and after-sales service

Customer site

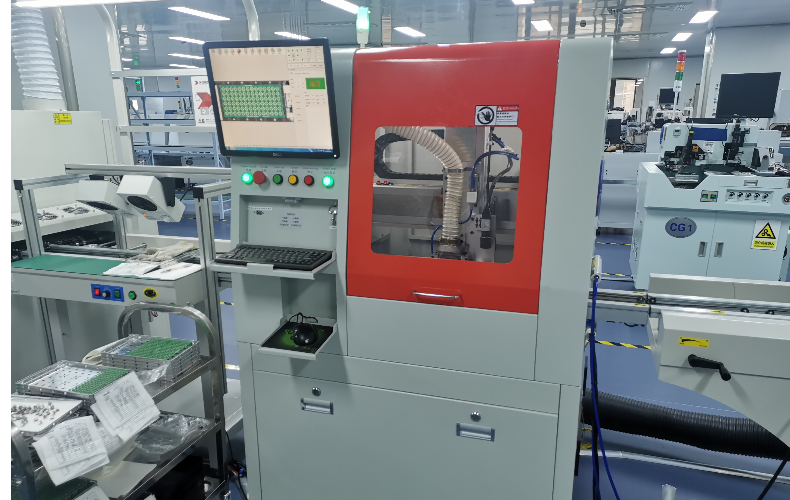

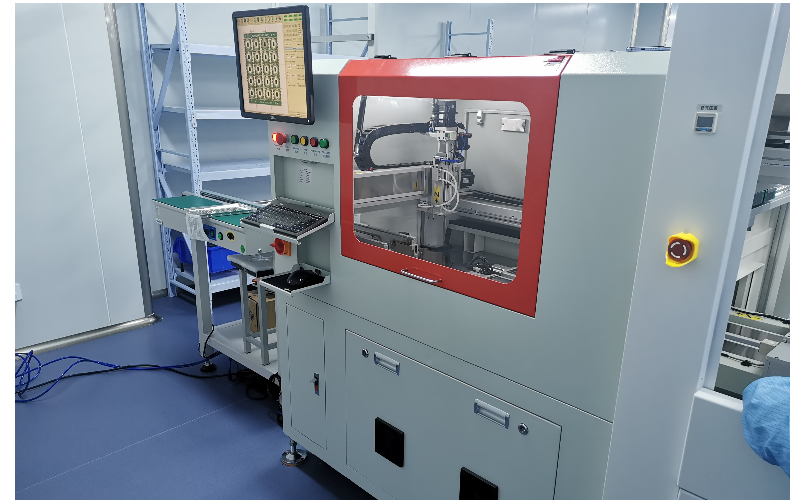

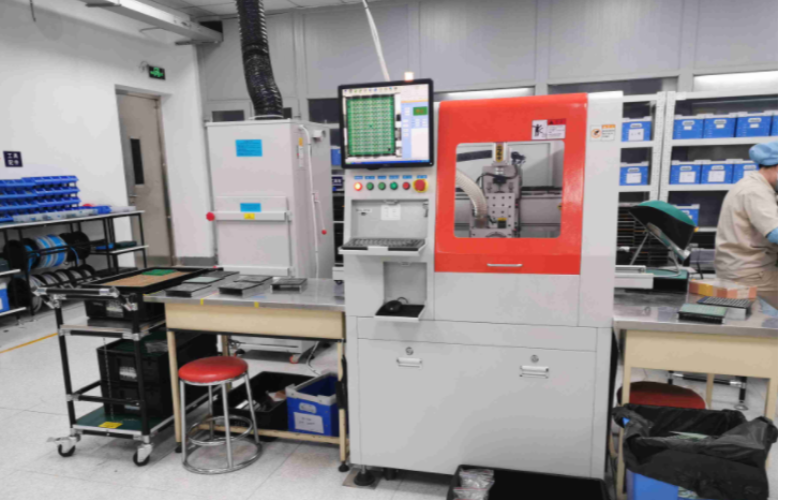

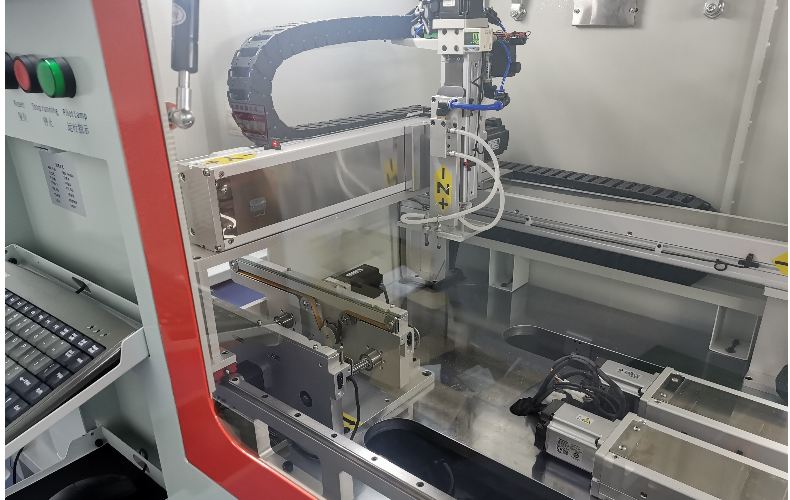

Online sawtooth splitter customer site

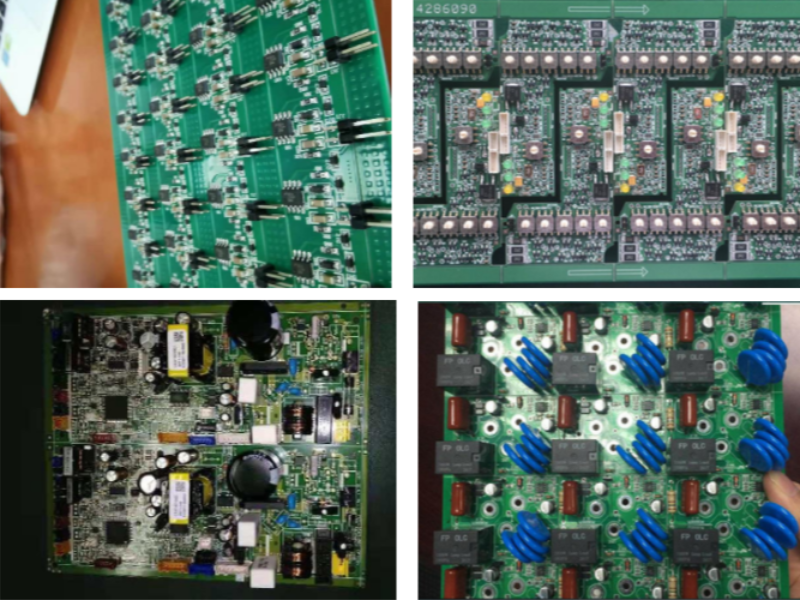

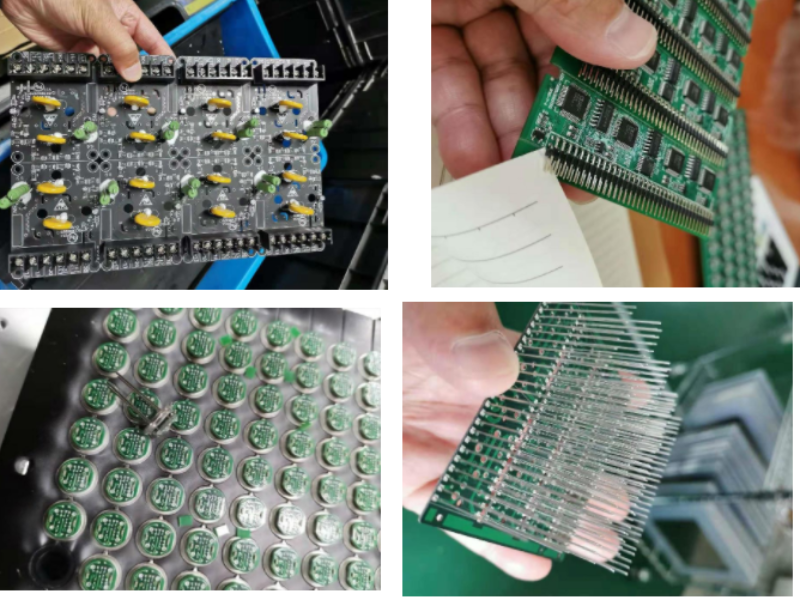

Function introduction

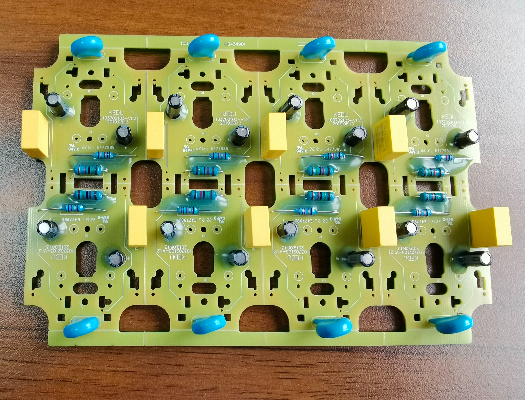

The power supply product has a capacitor resistor around the V slot

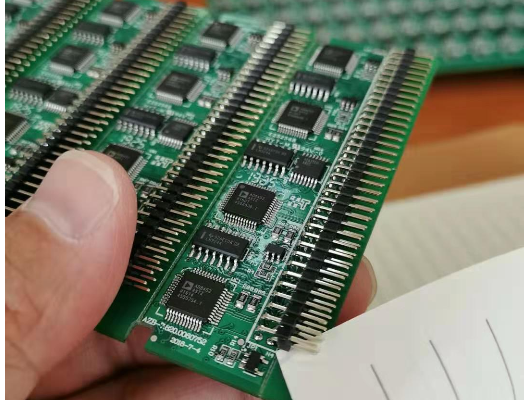

The rear of the V slot is covered with wire stitches

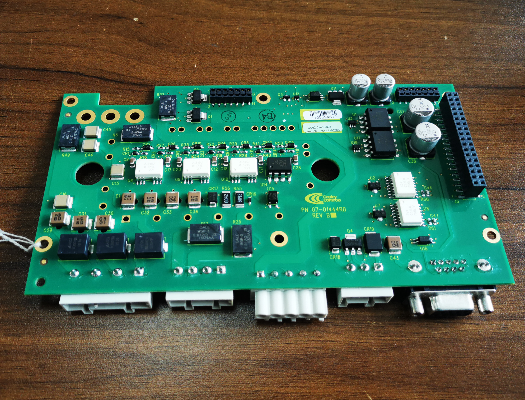

Medical products, rear component shielding V slot

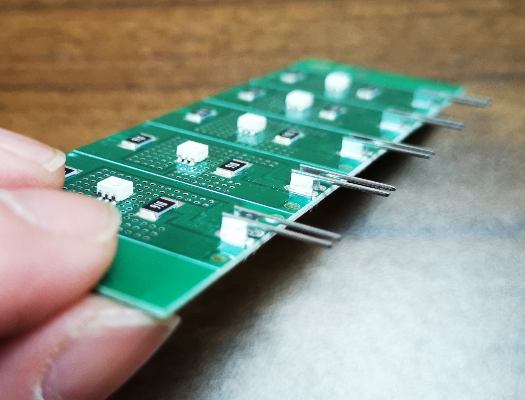

Lamp foot pit lamp products

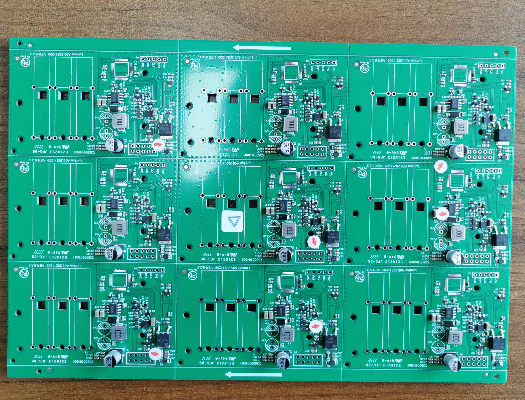

Multi-panel V slot products

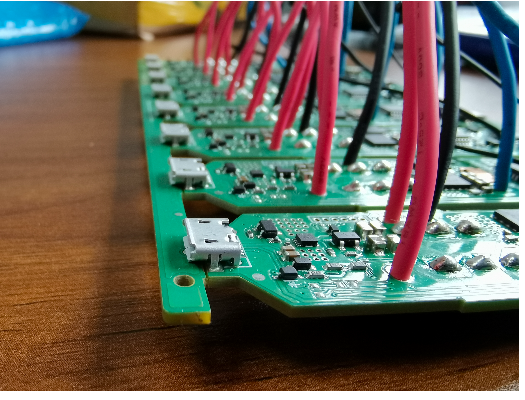

The rear component blocks the V slot

Configuration introduction

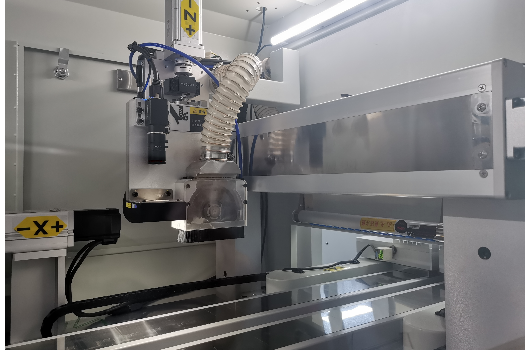

Horizontal gantry module

The use of gantry horizontal structure, good symmetry, high stability, excellent rigidity

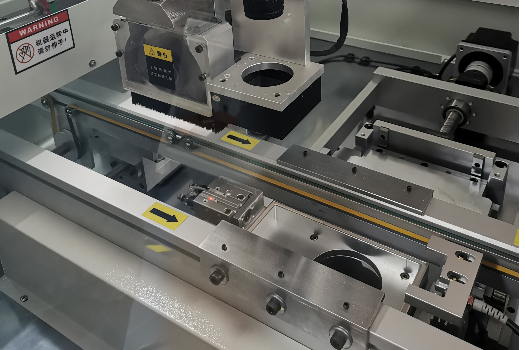

Track type automatic splint

Online track splint function, automatically sensing whether the splitter tooling is in place, automatically clamping the splitter tooling, cutting more stable

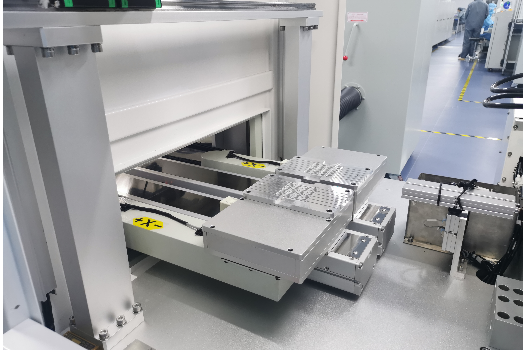

Double platform protruding structure

Seamless docking of the next station processes, such as online pendulum machine, manipulator, size detection machine, automatic burning and other processes

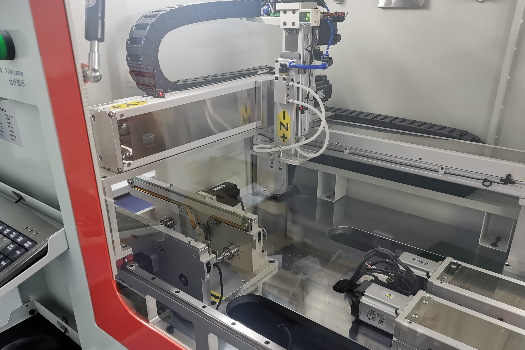

Automatic take-up shaft

Track feed plate, automatically grab the product to the cutting platform, the whole process of automatic production, no personnel operation

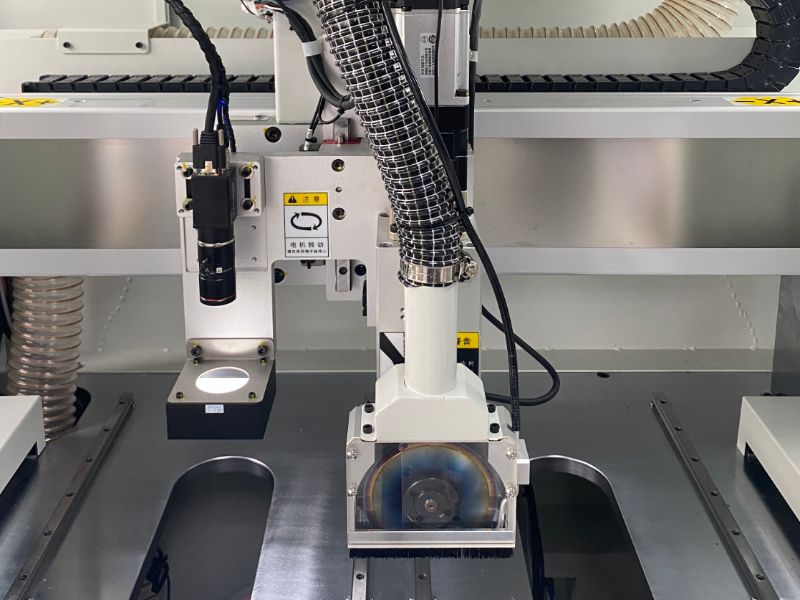

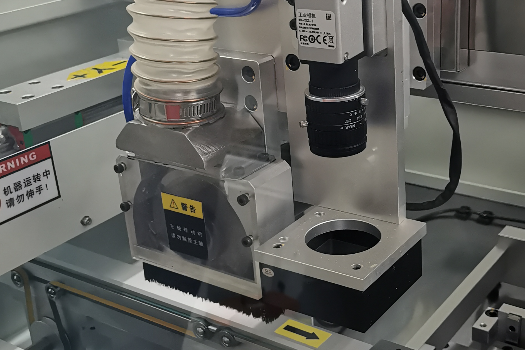

High power high speed spindle

Using high-power high-speed spindle, cutting stability, smooth incision, can achieve 90 degrees rotary cutting

Online sawtooth splitter EXE-380AT Product Features:

1. Action flow: feeding - entering the cutting area - blade loss detection (software can set the number of slices to be cut) - visual phase taking (Mark point recognition compensation) - X direction sub-board - Angle rotation of cutting blade group - Y direction sub-board - cutting

2. The cutting section of the product is smooth and smooth, without breaking edge burrs. High precision and consistent cutting size.

3. Blade line speed 3200M/Min. The stress of the sub-plate is small, and the actual test stress of the sub-plate is less than half of the stress of the milling cutter type sub-plate.

4. Fast splitter efficiency, the actual splitter speed is more than 100mm per second.

5. Equipment accuracy: ±0.01mm. Plate accuracy: ±0.05mm

6. Adopt high quality, high temperature resistant wafer cutting blade. Our company adopts the maximum 79mm diameter blade, the maximum degree of saving blade, and can also cut the components with high PCBA, the height limit is within 10mm.

7. Power supply: two-phase: AC220V 60HZ

8. Anti-stay function:

A.cba is not put well or different models, Mark point identification alarm.

B.cba not fixed adsorption, adsorption negative pressure gauge alarm.

c. Blade wear Z-axis automatic compensation, reach the limit equipment alarm.

Quality assurance after sale without worry

24 hours on call

There are Saturdays and Sundays and holidays
Pearl River Delta, Yangtze River Delta

Half an hour to respond, two hours to the scene

Quality assurance and after-sales service

- The warranty period of the whole equipment is one year. If there are quality problems, we will provide free after-sales maintenance and replacement.
