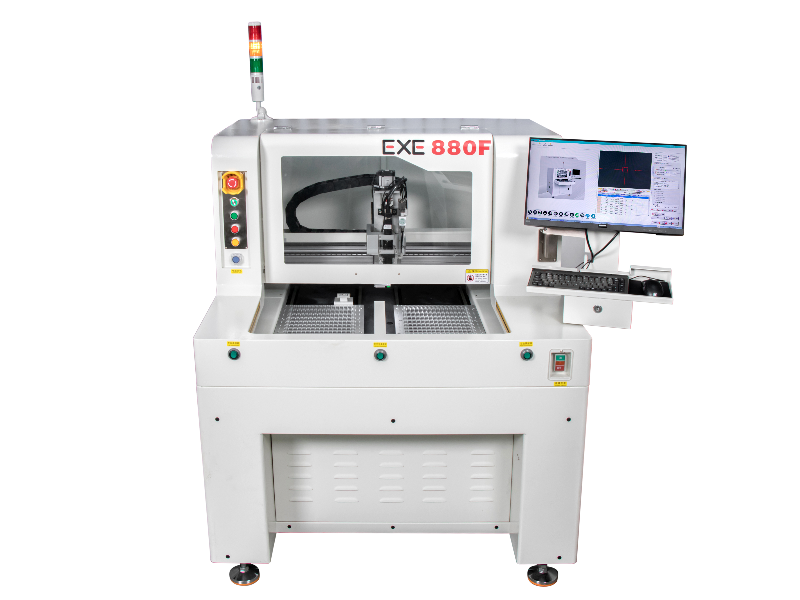

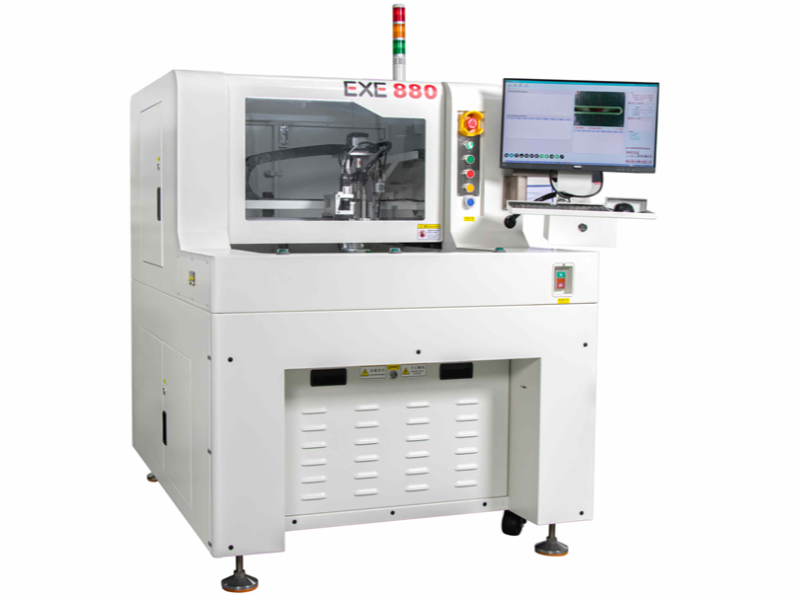

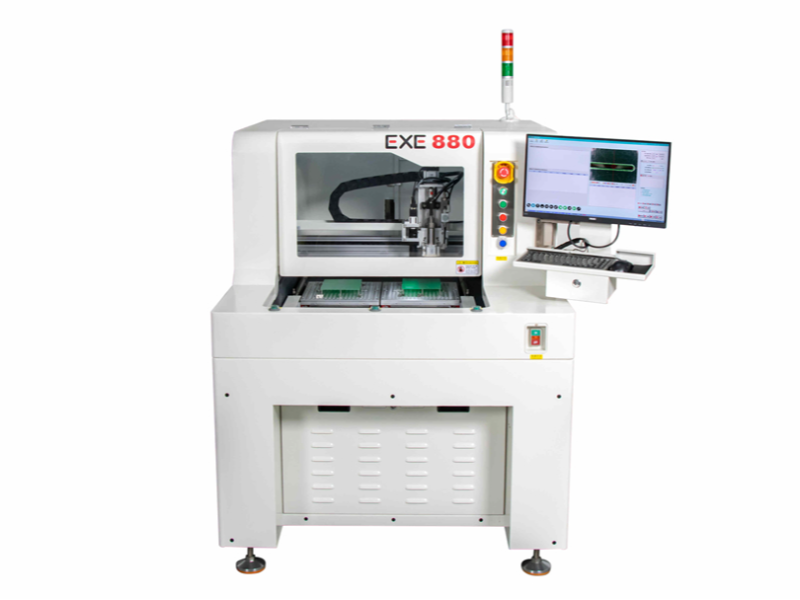

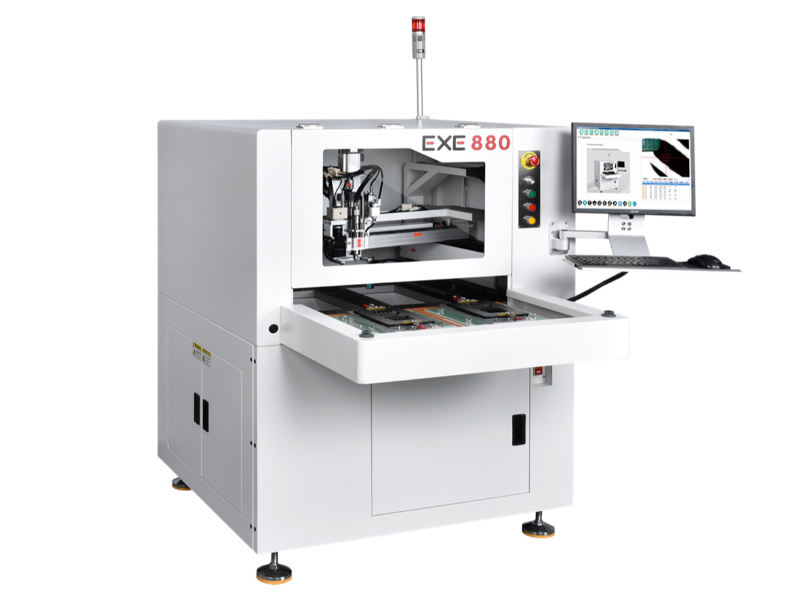

Vacuum EXE-880 on milling cutter divider

Specification parameter

1. Unilateral working size: 300mm X 350mm

2. Double table in and out: 580mm X 350mm

3.X-Y AC Servo speed: 0-1000mm/sec

4.Z AC Servo speed: 0-800mm/sec

5.X-Y repetition accuracy: ±0.01mm

6. Cutting accuracy: ±0.02mm

7.CCD camera calibration accuracy: ±0.01mm

8. Sub-plate stress value: below 300uε

9.NSK spindle speed: Max.60,000rpm

10. Tool diameter: 0.8-3.0mm

11.PCB board cutting thickness: 0.2mm-6.0mm

12. Dust collector power: 3HP (option 5HP)

13. Dust collector size: 640mm×785mm×1760mm(D×W×H)

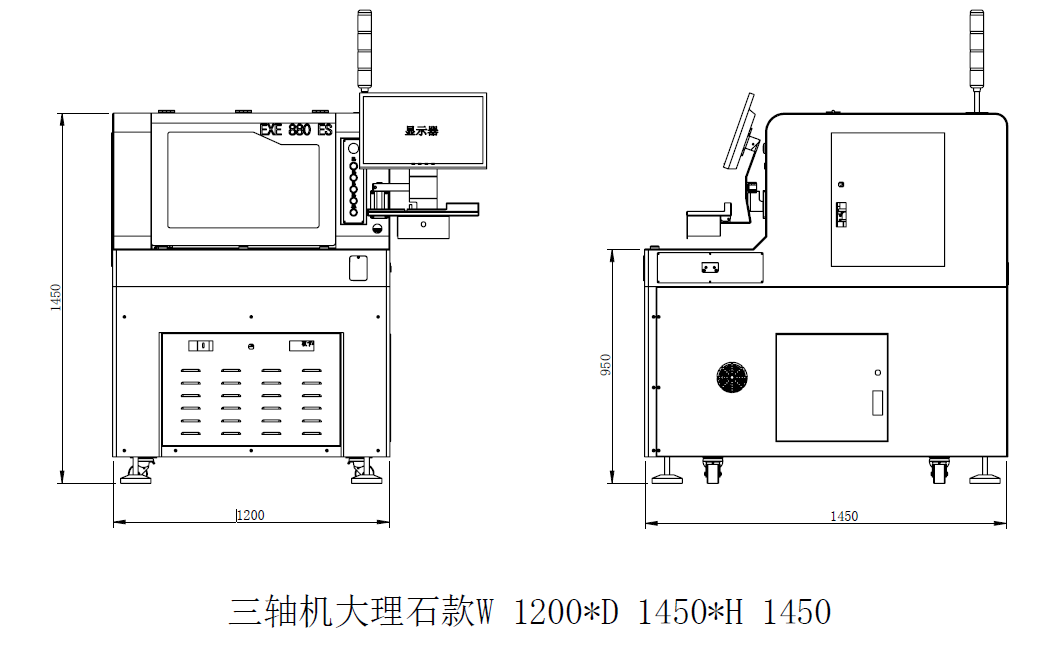

14. Machine size: 1075mm×1430mm×1460mm(D×W×H)

15. Host + dust collector weight: 800 KG

Product details page Product characteristics Quality assurance and after-sales service

Customer site

Milling cutter splitter customer site

Function introduction

Lower vacuum structure

Funnel seal design, suction inlet adopts 45 degree Angle, reduce dust in the internal vortex phenomenon.
Software operating interface

Windows operation interface friendly Chinese and English switch,
Graphical window operation interface, editing program is simple, can quickly complete the multi-point program.

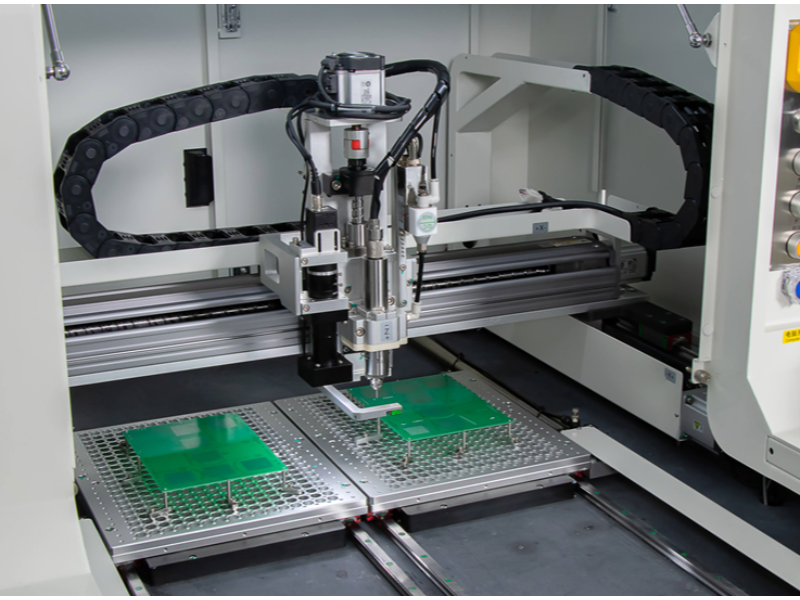

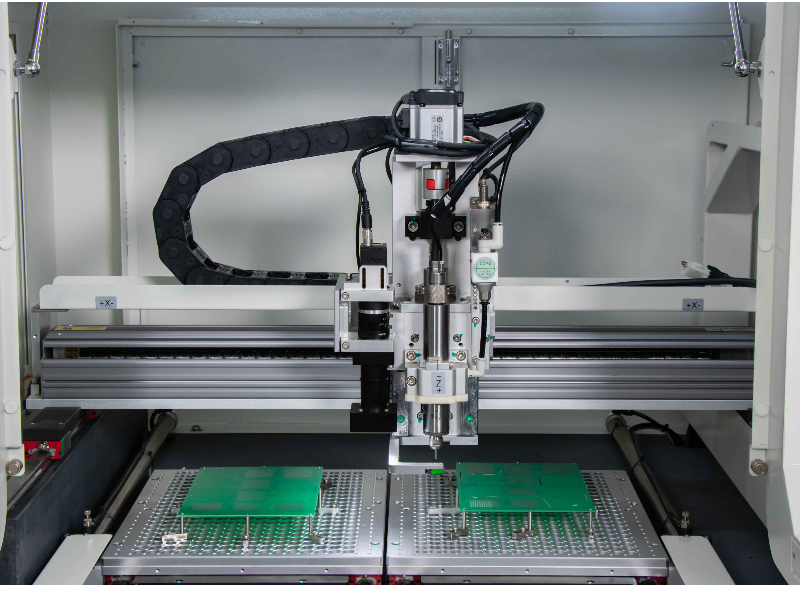

Dual TOP working platform

Double TOP table structure, the left and right table adopts cylinder transmission, processing speed block, high production efficiency, strong stability, greatly improve the processing capacity.
Milling cutter fracture detection system

Milling cutter detection system adopts photoelectric sensor to monitor milling cutter status in real time and effectively prevent the phenomenon of continuing to run after breaking the cutter.

$Milling cutter fracture detection system$
Upper suction structure

The upper dust suction structure (optional) adopts electrostatic brush to seal the cutting point, and independently vacuums the single cutting point, greatly improving the dust suction effect.
The cutter automatically adjusts the number of segments

The software sets up the milling cutter segment function, the milling cutter after using a section of automatic cutting compensation, prolong the service life of the milling cutter, reduce the cost.

Configuration introduction

Electronic control layout

Electronic control line reasonable wiring, easy maintenance.

Ion gun

PCB board cutting generates a lot of static electricity, dust will be adsorbed on the surface of the PCB board, ion wind blowing into the surface of the PCB board to eliminate static electricity, ion balance up to ±5V.

Marble platform

The main structure adopts marble platform, motion module and plate cutting, high stability.

Horizontal gantry module

The use of gantry horizontal structure, good symmetry, high stability, excellent rigidity.

Japanese NSK spindle

Japan NSK spindle, high cutting precision, quality and efficiency double guarantee

Vacuum EXE-880 on milling cutter divider Product Features:

1, automatic PCB splitter adopts high-speed NSK spindle to cut the splitter, greatly reducing the cutting stress, high precision, small inertia, fast response.

2. The PCB taking and placing area of the double Y-axis workbench is equipped with raster safety facilities to avoid manual misoperation and meet the requirements of public safety.

3, the window operation interface is friendly to switch between Chinese and English, the graphical window operation interface, the editing program is simple, can quickly complete the multi-point program.

4, multi-layer management rights of software users, prevent misoperation and other behaviors.

5. The vacuum under the automatic PCB separator adopts a sealed design, and the suction inlet adopts a 45 degree Angle to reduce the swirl phenomenon of dust in the interior.

6, the upper vacuum structure (optional) adopts electrostatic brush to seal the cutting point, independent vacuum for a single cutting point, greatly improving the vacuum effect.

7. The milling cutter detection system uses photoelectric sensors to monitor the milling cutter status in real time and effectively prevent the phenomenon of continuing to run after the cutter is broken.

8, the software set milling cutter segmentation function, automatic cutting compensation, prolong the service life of the milling cutter, reduce costs.
