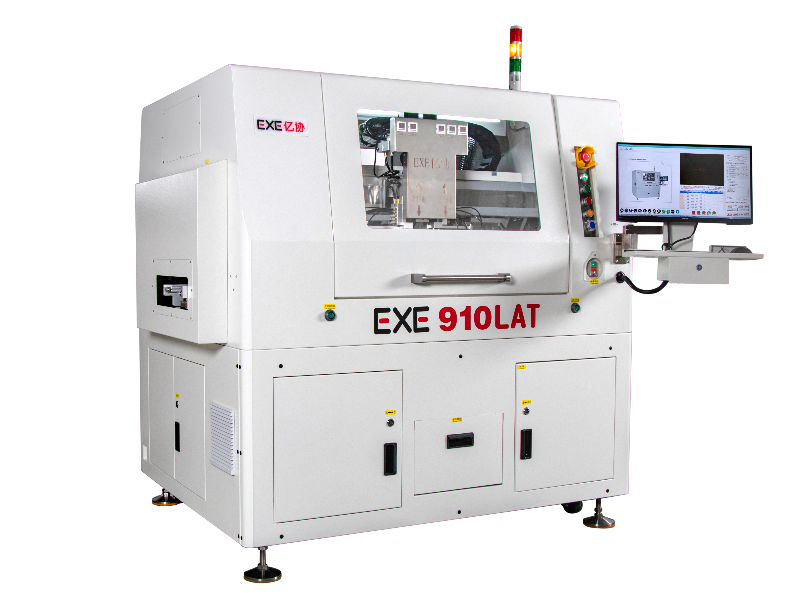

Double spindle online splitter EXE-910L

Specification parameter

1. Sub-plate working range: 300mmx350mm

2.xyz drive mode: ac servo motor

3. Number of motion axes: 9 axes

4. Program teaching method: color ccd image intuitive teaching input

5. Operation interface: win7 window operation interface

6. Upper dust suction power: 5hp, lower dust collector power: 3hp (option 5hp)

7. Cutting spindle sycotec (Germany) : max80000rpm (automatic tool change)

8.x-y ac servo speed: 0-1000mm/sec

9.z ac servo speed: 0-800mm/sec

10.x-y repetition accuracy: ±0.02mm

11. Cutting accuracy: ±0.05mm

12.ccd camera calibration accuracy: ±0.01mm

13. Sub-plate stress value: below 300uε

14. Tool diameter: 0.8-3.0mm

15.pcb board cutting thickness: 0.2mm-6.0mm

16. Main machine and dust collector pressure: 220v 1φ and 3φ

17. Power consumption: 3.5kva

18. Static gun

19. Vision system: high-resolution digital camera

20. Drive motor: AC brushless servo motor

21. Mechanical taking and releasing arm: anti-static vacuum suction nozzle

22. Feeding method: track conveying

23. Discharge method: belt conveyor or vehicle output or track conveyor

24. Load transfer mode: vacuum nozzle adsorption load transfer

25. Flow direction: Left → Right → Left (optional)

26. Program backup: usb interface

27. Control mode: special controller

28. Dust collector size: 640mm×785mm×1760mm(d×w×h)

29. Machine size: 2014mm×1230mm×1650mm(d×w×h)

30. Host + dust collector weight: 1000 kg

Product details page Product characteristics Quality assurance and after-sales service

Customer site

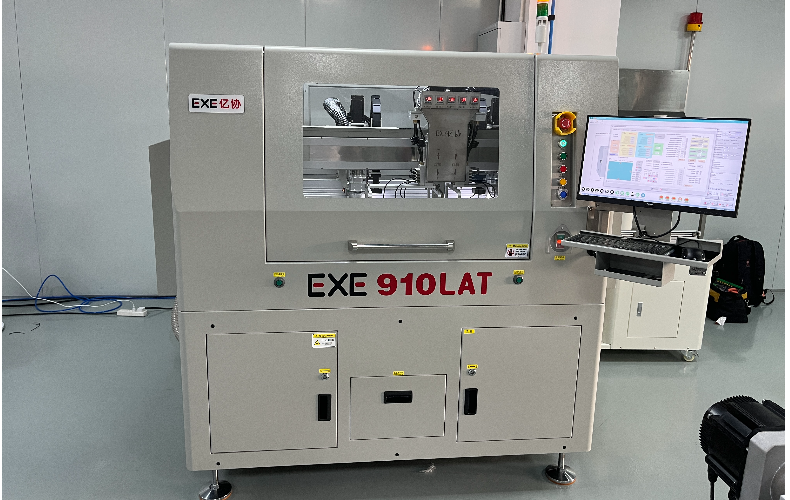

Double spindle splitter customer site

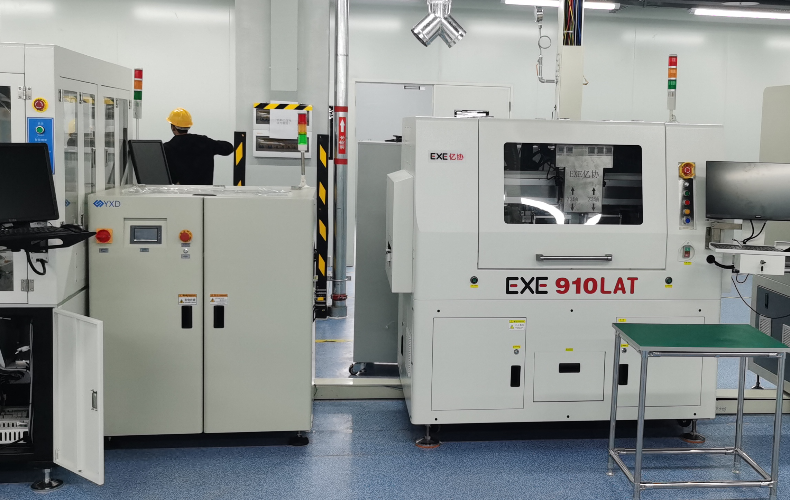

Online distributor customer site

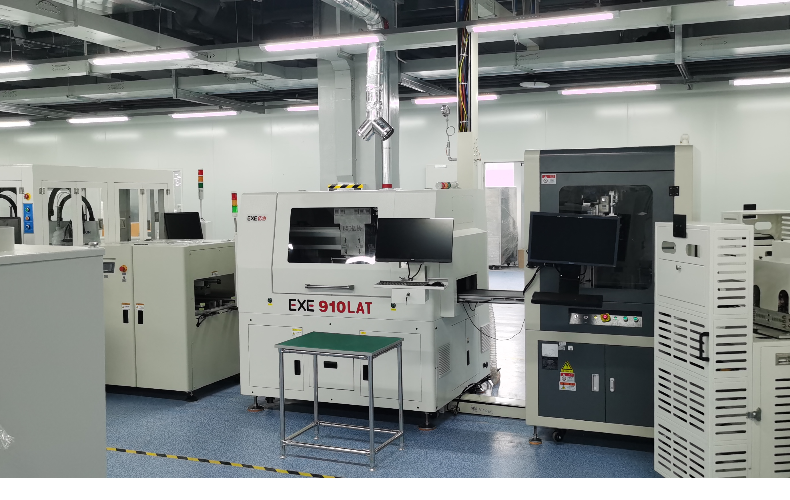

Double spindle splitter customer site

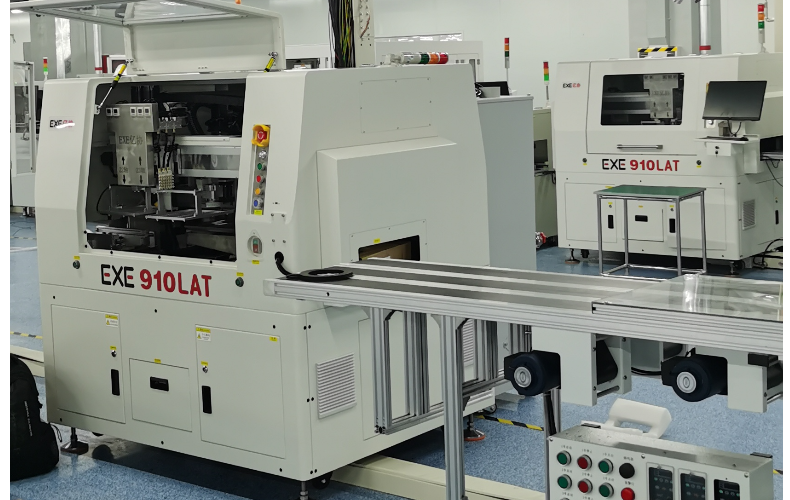

Online panel machine 8 on-site

Function introduction

Software operating interface

The Windows operation interface is quick to switch between Chinese and English
Graphical window operation interface, editing program is simple, can quickly complete multi-point program programming.

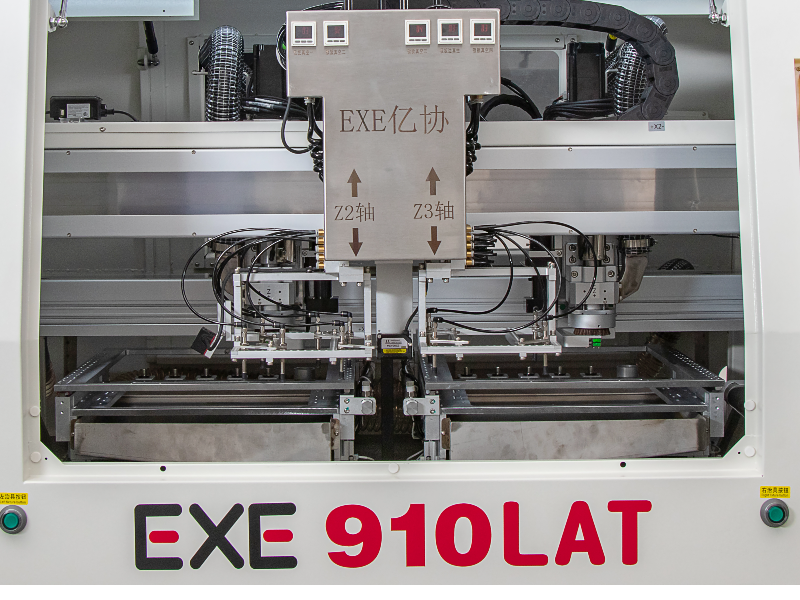

Vacuum suction plate taking structure

1. Taking and placing device: automatic loading and unloading (modular vacuum claw, vacuum device, independent control)
2. Transmission structure :X2 axis moving Z2, Z3 axis absorbing, AC servo motor control.
3. Take-up speed :0-1000mm/sec (configurable
Automatic tool change mode

1. Adopt automatic tool changing spindle imported from Germany. Save time, achieve automation, reduce human factors, high precision, strong stability
2. Built-in five groups of milling cutter cutter library, convenient automatic replacement of milling cu
Special split-plate fixture track discharge

The product splitter fixture is placed on the processing platform splitter, and the splitter fixture clamp and place track into the next step after processing is completed.
Clamp type plate taking structure

The split-plate fixture of the product is placed on the split-plate of the processing platform, and the split-plate fixture clamp and place the track into the lower process after the processing is completed.
Special product split-plate fixture into the track

Dedicated splitter fixture track entry mode, seamless link to the previous process.

Configuration introduction

Product height detection system

Standard PCBA product height measurement system, to ensure that the product vacuum discharge plate in place accurate detection.

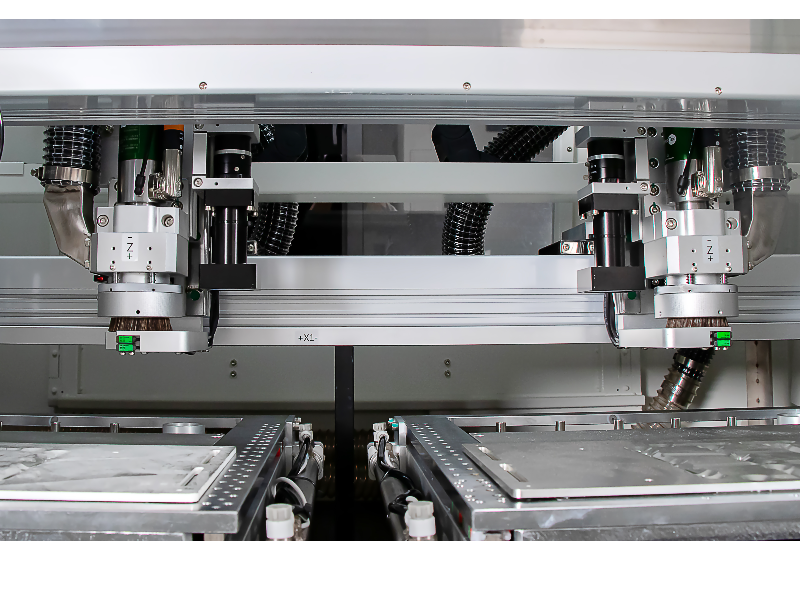

German SycoTec spindle

Germany SycoTec spindle, automatic tool change system, to achieve the whole automatic tool change save time, reduce human factors, high precision, strong stability.

Horizontal gantry module

The use of gantry horizontal structure, good symmetry, high stability, excellent rigidity.

Floating brush

Floating brush structure, according to different plate thickness, component height, automatically adjust the best dust suction effect, increase the service life of the milling cutter.

Marble platform

The main structure adopts marble platform, motion module and plate cutting, high stability.

Electronic control layout

Electronic control line reasonable wiring, maintenance, easy and convenient.

Double spindle online splitter EXE-910L Product Features:

- On-line milling cutter splitter, automatic board entry, automatic cutting, automatic board out greatly improve production efficiency and save labor costs reflect fully automated production line.

- The whole system is equipped with CCD visual alignment system to improve cutting accuracy and efficiency and prevent misoperation.

- X axis, Y axis adopts high precision dust-proof module to ensure strong cutting stability and high precision.

- Standard laser shifter imported from Japan to detect whether PCBA products are flat.

- Automatic material removal using vacuum suction cups for transplanting.

- Using independent CNC special motion controller, the control part is integrated into one, the loop control stability is strong, the precision is high, the response is fast, and the anti-interference is strong.

- The equipment operation adopts English and Chinese interface conversion, and the software design is more user-friendly and easy for engineers to operate.

- With straight line, arc and irregular edge cutting function, to achieve broken tool detection, slip tool detection function.

- The use of German Sycotec imported high-speed spindle (Max: 80000RPM), cutting stress is small, high precision, increase cutting efficiency, automatic tool change to achieve full automation.

Quality assurance after sale without worry

24 hours on call

There are Saturdays and Sundays and holidays
Pearl River Delta, Yangtze River Delta

Half an hour to respond, two hours to the scene

Quality assurance and after-sales service

- The warranty period of the whole equipment is one year. If there are quality problems, we will provide free after-sales maintenance and replacement.
