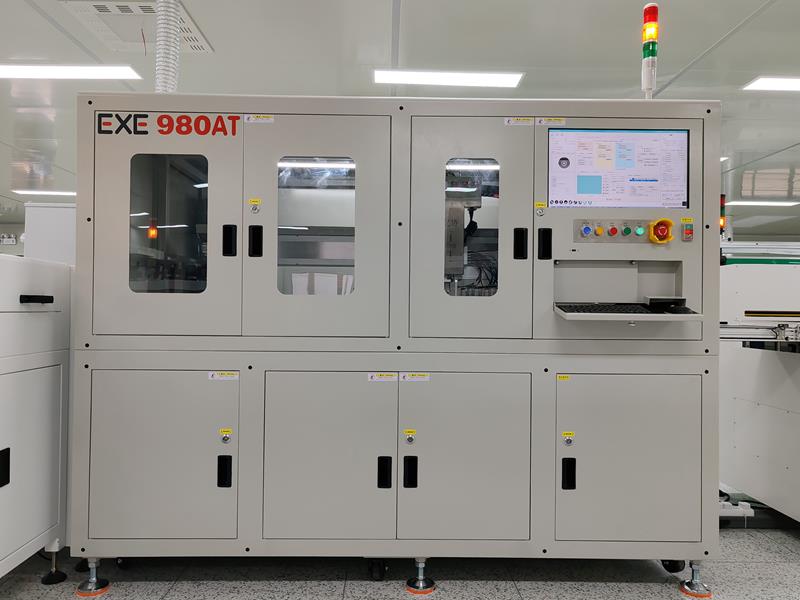

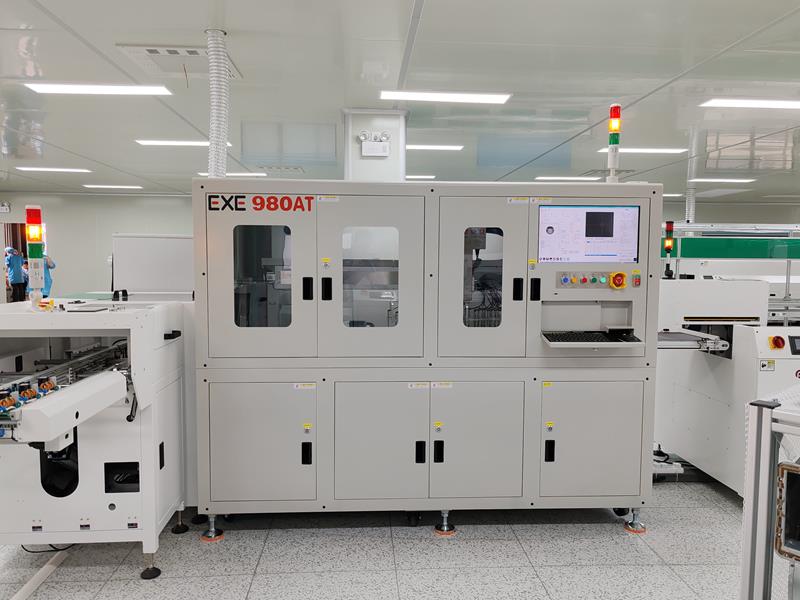

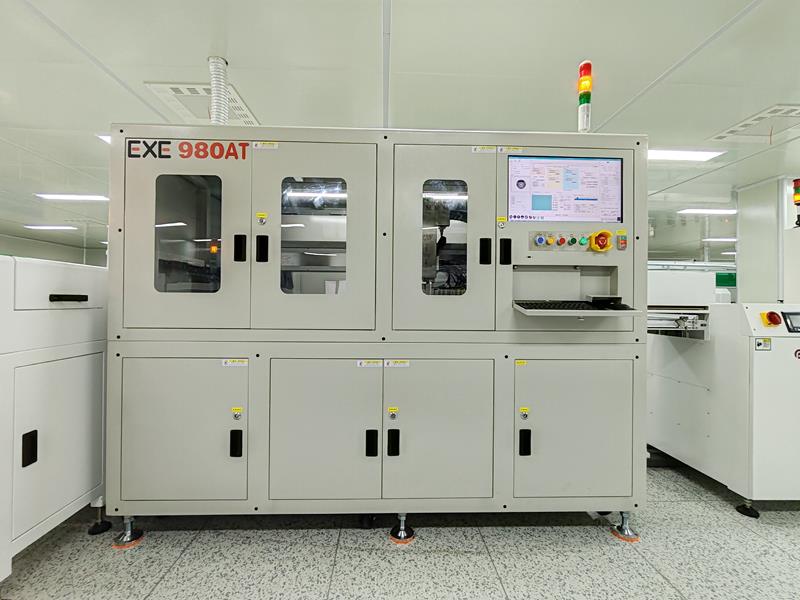

Under the line cutting machine EXE-980AT

Specification parameter

1. Sub-plate working range: 400mmx350mm

2.xyz drive mode: ac servo motor

3. Number of motion axes: 9 axes

4. Program teaching method: color ccd image intuitive teaching input

5. Operation interface: win10 window operation interface

6. Upper suction power: 5hp

7. Automatic tool changing cutting spindle: max80000rpm

8.x-y ac servo speed: 0-1000mm/sec

9.z ac servo speed: 0-800mm/sec

10.x-y repetition accuracy: ±0.01mm

11. Cutting accuracy: ±0.05mm

12.ccd camera calibration function

13. Sub-plate stress value: below 150uε

14. Tool diameter: 0.8-3.0mm

15.pcb board cutting thickness: 0.2mm-6.0mm

16. Main machine and dust collector pressure: 220v 1φ and 3φ

17. Power consumption: 3.5kva

18. Static gun

19. Vision system: high-resolution digital camera

20. Drive motor: AC brushless servo motor

21. Mechanical taking and releasing arm: anti-static vacuum suction nozzle

22. Feeding method: track conveying

23. Discharge method: belt conveyor or vehicle output or track conveyor

24. Load transfer mode: vacuum nozzle adsorption load transfer

25. Flow direction: Left → Right → Left (optional)

26. Program backup: usb interface

27. Control mode: special controller

28. Dust collector size: 820mmx550mmx1600mm(d×w×h)

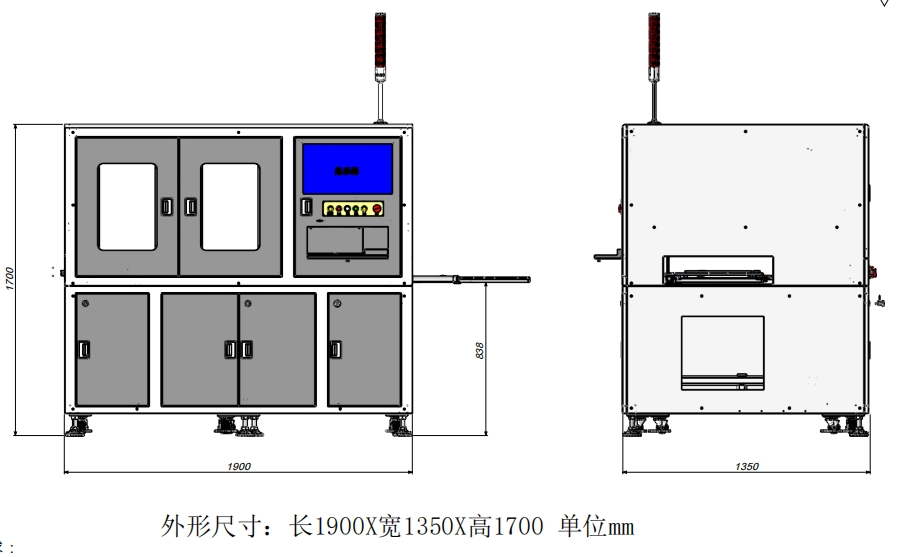

29. Machine size: 2000mmx1350mmx1600mm(d×w×h)

30. Host + dust collector weight: 1200 kg

Product details page Product characteristics Quality assurance and after-sales service

Customer site

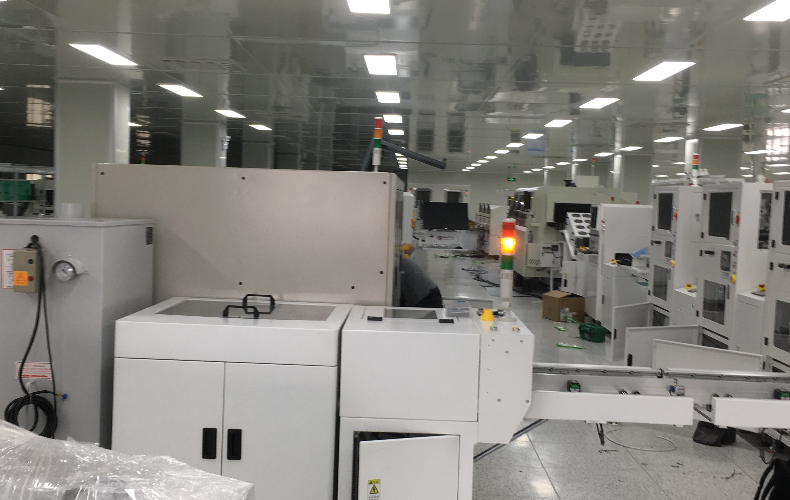

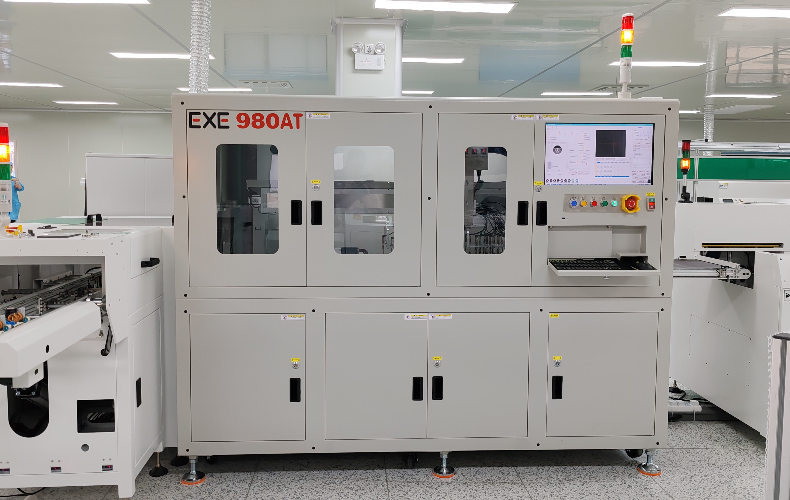

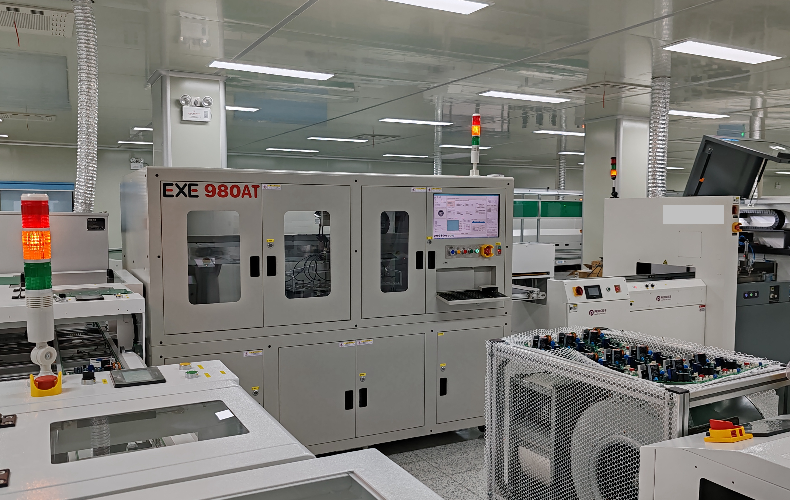

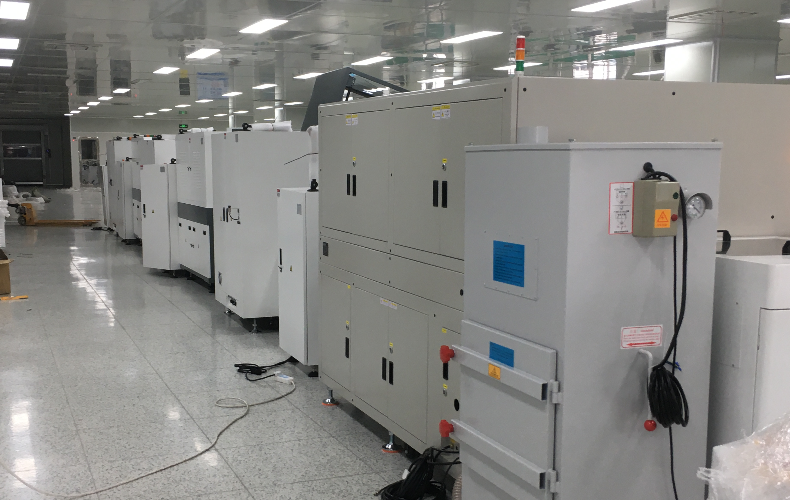

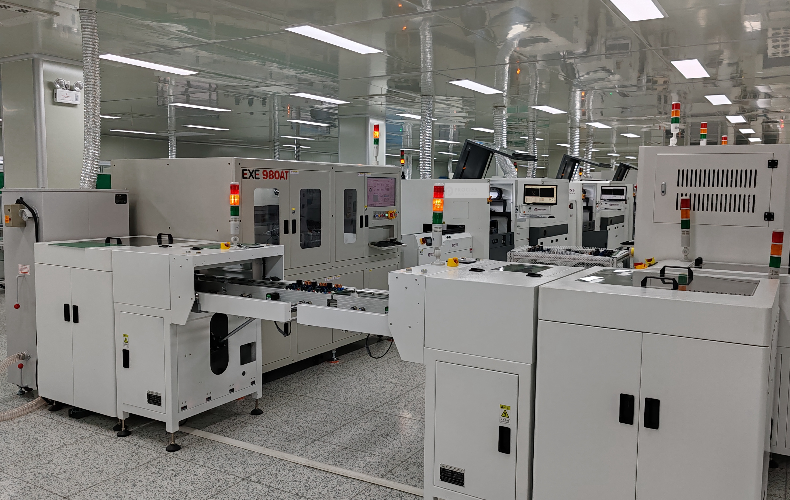

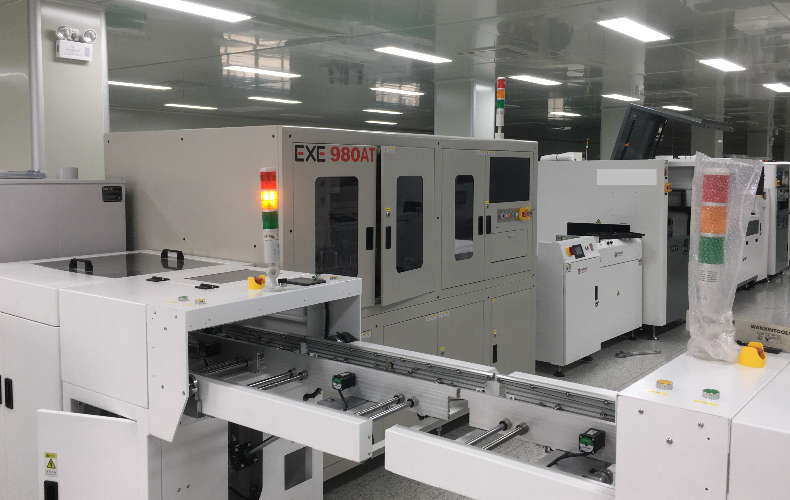

Offline cutting machine customer site

Function introduction

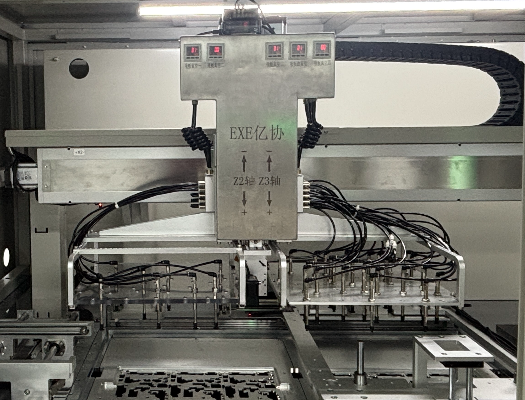

Vacuum suction plate taking structure

1. Taking and placing device: automatic loading and unloading (modular vacuum claw, vacuum device, independent control)
2. Transmission structure :X2 axis moving Z2, Z3 axis absorbing, AC servo motor control.
3. Take-up speed :0-1000mm/sec (configurable

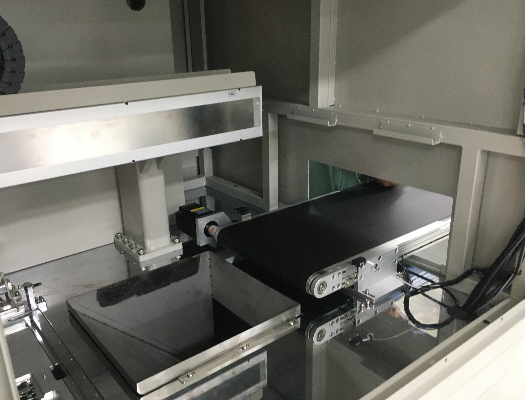

Special anti-static belt discharge

After the processing is completed, the takeout shaft is grabbed into the belt line and discharged!

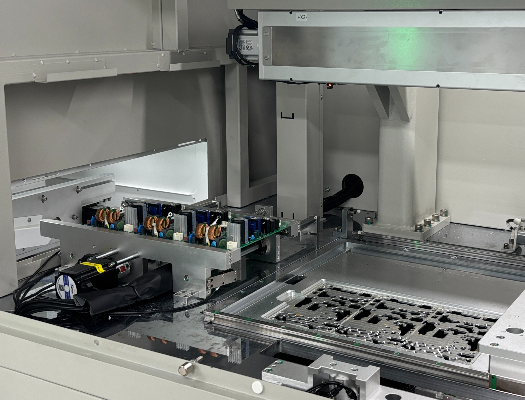

Product splice into the track mode

The product goes into the track, the taking shaft grabs and puts the split-plate platform split-plate.

Configuration introduction

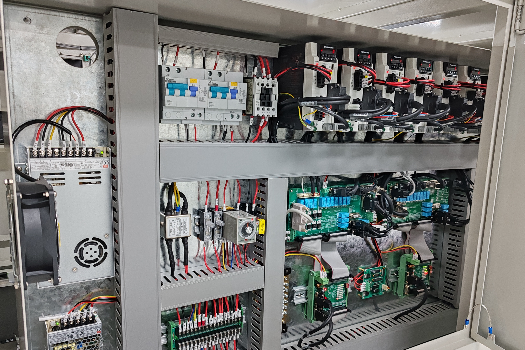

Electronic control layout

Electronic control line reasonable wiring, maintenance, easy and convenient.

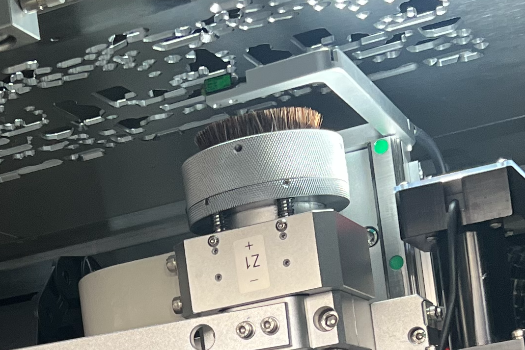

Floating brush

Floating brush structure, according to different plate thickness, component height, automatically adjust the best dust suction effect, increase the service life of the milling cutter.

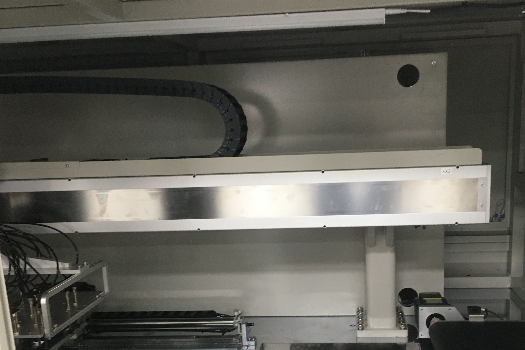

Horizontal gantry module

The use of gantry horizontal structure, good symmetry, high stability, excellent rigidity.

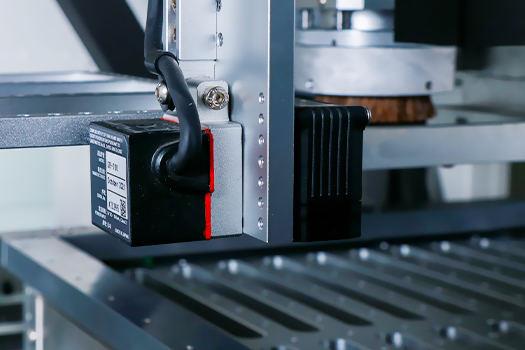

Product height detection system

Standard PCBA product height measurement system, to ensure that the product vacuum discharge plate in place accurate detection.

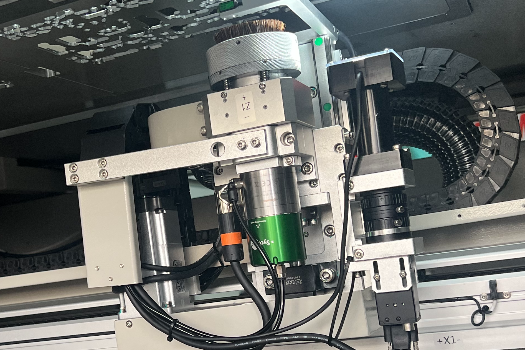

Automatic tool change spindle

Automatic tool change system is adopted to realize the whole automatic tool change saving time, reducing human factors, high precision and strong stability.

Under the line cutting machine EXE-980AT Product Features:

- In line cutting machine, automatic board into, automatic cutting, automatic board out greatly improve production efficiency and save labor costs reflect fully automated production line.

- The whole system is equipped with CCD visual alignment system to improve cutting accuracy and efficiency and prevent misoperation.

- X axis, Y axis adopts high precision dust-proof module to ensure strong cutting stability and high precision.

- Standard laser shifter imported from Japan to detect whether PCBA products are flat.

- Automatic material removal using vacuum suction cups for transplanting.

- Using independent CNC special motion controller, the control part is integrated into one, the loop control stability is strong, the precision is high, the response is fast, and the anti-interference is strong.

- The equipment operation adopts English and Chinese interface conversion, and the software design is more user-friendly and easy for engineers to operate.

- With straight line, arc and irregular edge cutting function, to achieve broken tool detection, slip tool detection function.

- Automatic tool changing high-speed spindle (Max: 80000RPM), small cutting stress, high precision, increase cutting efficiency, automatic tool changing to achieve full automation.

Quality assurance after sale without worry

24 hours on call

There are Saturdays and Sundays and holidays
Pearl River Delta, Yangtze River Delta

Half an hour to respond, two hours to the scene

Quality assurance and after-sales service

- The warranty period of the whole equipment is one year. If there are quality problems, we will provide free after-sales maintenance and replacement.
